Is My Fuse Board Old?

You've likely seen it tucked away in your hallway, garage, or utility cupboard—the fuse board. It’s the heart of your home's electrical system and a vital safety feature. But how do you know if it’s old? More importantly, why does it matter? In this comprehensive guide, we explain how to identify an aging fuse board, why obsolete electrical equipment poses risks, what modern units offer, and whether you’re eligible for an upgrade in Leeds—plus details on cost, compliance, and how Duravault can help.

How Do I Know If My Fuse Board Is Old?

Older fuse boards typically display a handful of tell-tale signs. You might recognize yours by its physical appearance, components, or even by how frequently it’s tripping. In many older Leeds homes—areas such as Headingley, Beeston, or Kirkstall—it's common to find:

• Ceramic fuse carriers or black plastic rewireable fuses that rely on manually replaceable wire inserts.
• Boards that lack RCD (Residual Current Device) or RCBO (Residual Current Breaker with Overcurrent) protection, instead relying solely on fuses or MCBs (Miniature Circuit Breakers) which do not protect against earth faults.

Visually, an old board might be mounted on a wooden or metal backing, with messy wiring or no clear labelling. If your unit has no manufacturer sticker or date code visible, or the board design seems vintage (fuses that need rewiring each time a fault occurs), it likely classifies as old. Additionally, if you suffer frequent trips, burning smells, scorch marks or warm terminals when the board is overloaded, or you have to reset multiple times due to antiquated design, these can also indicate that the fuse board is past its safe, modern lifespan.

What Age Would Be Considered an Old Fuse Board?

There is no strict expiry date—but most boards more than 15 to 20 years old are considered outdated by industry standards. If the installation predates the 2000s or hasn't been updated since before 2010, it’s likely old and may not meet current wiring regulations. From around 2005 onwards, the requirement for RCD protection became widespread in UK homes. If your board lacks RCDs, it likely predates this era. Modern boards installed from 2015 upwards will often include RCBOs on critical circuits, surge protection, labelling and neat DIN rail configurations. Fuse boards installed before the 1990s almost certainly use rewireable fuse carriers rather than MCBs. Even boards from the early 2000s may not meet full standards, especially if they were never upgraded to include RCDs, surge protection, or proper labelling. If the board has no evidence of the current 18th Edition wiring compliance (introduced in 2018) or lacks a certificate, its age is suspect.

Why Is My Fuse Board Old?

Understanding how an old fuse board ended up in your home often relates to property history, renovations, or landlord oversight:

• In older Leeds suburbs, properties like terraces or early semis may have had their electrics upgraded in the 1980s or 1990s—without a full modernisation, the consumer unit may have only received minimal updates.
• Sometimes landlords or homeowners opt for a partial upgrade after an issue—just replacing blown fuses or outdated MCBs—while the main board remains the same.
• In shared flats or HMOs, the landlord may simply maintain the installation until safety defects force a full replacement.
• In post war houses or converted properties, fuse boards may have been relocated or extended without being fully updated or labelled correctly.

These incremental updates can leave you with a fuse board that looks functional—but lacks the full protective features now expected under modern regulations.

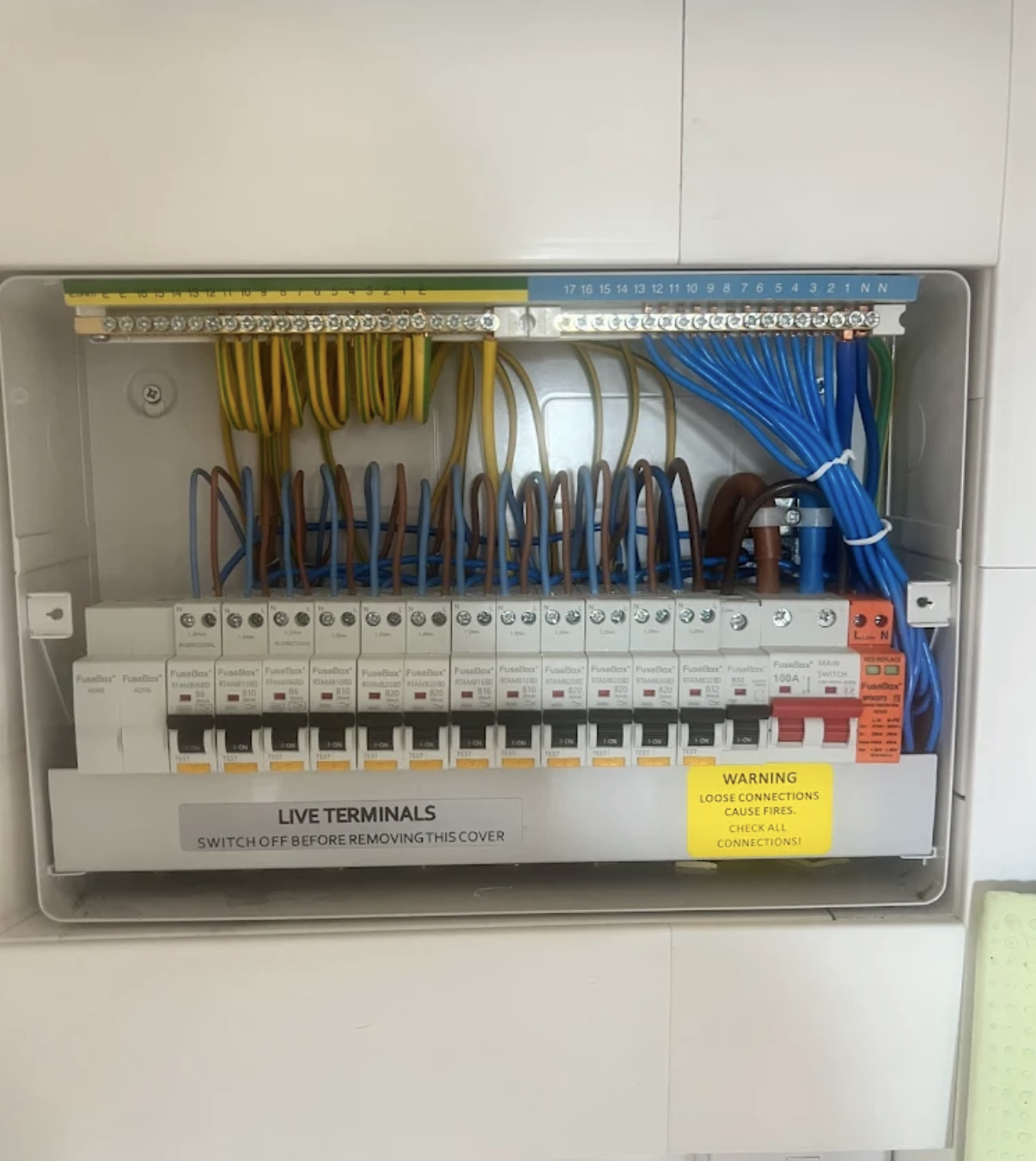

What Does a New Fuse Board Do?

Replacing an old fuse board with a modern consumer unit does more than tidy up your switchboard—it significantly improves safety, convenience, and future capability:

• Protects against electric shock (RCDs/RCBOs) by detecting current imbalance and cutting power instantly.
• Prevents overloads and short circuits via sensitive MCBs.
• Offers surge protection (SPD) which protects devices from voltage spikes, complying with the 18th Edition of BS 7671.
• Circuit labelling and spare ways for additional circuits like EV chargers or home automation.
• Cleaner installation with DIN-rail modules, clear terminal arrangement, and neat clips—especially beneficial in Leeds townhouses or villas where cable runs can be complex.
• Improved reliability, reducing trips, ensuring smoother restarts, and extending the life of your appliances.

For landlords, modern boards also support compliance during Electrical Installation Condition Reports (EICRs), providing tenants with peace of mind and avoiding costly remedial work.

Can I Have a New Fuse Board?

The good news: if your board is old, you're almost always eligible to install a new one—provided there's no structural or supply constraint. Replacement is subject to a site survey and qualified installation; your home must have accessible wiring routes, earthing/bonding in place, and consent for work under Building Regulations Part P. At Duravault we provide:

• A free on-site consultation across Leeds—checking service type, earth/neutral bar condition, and cable routes.
• If your board has asbestos backing or needs relocation, we provide safe removal under regulations.
• A fixed-price quote—no hidden fees—detailing supply and installation of a modern fuse board from trusted brands.
• All notification to local authorities or building control if required.

Provided you have consumer unit space, safe access, and up to standard main supply rating, most households—whether new-builds in Seacroft or converted flats in Chapel Allerton—can have their boards replaced.

How Much Does a New Fuse Board Cost in Leeds?

The price depends on board type, number of circuits, and whether accessories like surge protection or landlord modules are needed. Here’s a breakdown of typical costs (excluding VAT):

• Standard consumer unit (split RCD with 6–8 circuits): £400–£550
• High-integrity or mixed board (with separate fridge or smoke alarm circuits): £500–£650
• RCBO-dedicated board for smart or landlord installations: £600–£750+
• Additional features: SPD surge protection (£40–£80), isolation switch, labelling (£20–£40), asbestos removal/additional disposal (£100+)

Installation, testing, certification, and disposal of the old board are included. Duravault issues the Installation Certificate and notifies Building Control where needed. We also take into account local Leeds labour rates and material availability to ensure fair pricing.

Do I Need an EICR Before a Fuse Board Upgrade?

Yes—a full Electrical Installation Condition Report (EICR) is strongly recommended, and often required, before upgrading your fuse board. The purpose of an EICR is to ensure that the existing wiring, earthing, bonding, and circuits are all in a condition that can safely support a new consumer unit. A modern fuse board with RCD or RCBO protection is much more sensitive and will detect underlying faults that older boards might have overlooked. An EICR will assess whether:

• The current wiring is safe and free from dangerous faults.
• Earthing and bonding meet current regulations (especially for gas and water).
• There are no dangerous live conductors, overloaded circuits, or insulation resistance issues.
• The fuse board upgrade won’t expose hidden faults elsewhere in the property.

At Duravault, we carry out a pre-board EICR before any consumer unit replacement, ensuring the installation meets the BS 7671 (18th Edition) regulations. This also protects you legally and financially should issues arise down the line.

What does it cost?

A standard EICR carried out as part of a fuse board replacement typically costs:

• 1-bed to 3-bed property: £175–£400+
• Larger properties or HMOs: £250–£600+

If you proceed with the fuse board upgrade after a satisfactory EICR, we can often bundle the cost into a package deal, offering savings on combined testing and installation. Should the EICR uncover significant faults, we will provide a clear breakdown of required remedial works before installation.

Seamless Process with Duravault

Because we handle both the EICR and the consumer unit replacement, we ensure everything is managed under one service. You won’t need to coordinate with different contractors or risk gaps in compliance. We handle:

• Testing
• Reporting
• Remedials (if required)
• Full installation of the new fuse board
• Certification and Building Control notification

How Duravault Can Help and the Areas We Cover

Duravault specialise in safe, compliant fuse board replacements and electrical upgrades across Leeds. With NICEIC-approved electricians on-call, we bring years of expertise to every job—whether it’s a period Victorian home in Headingley or a suburban semi in Oulton. Our process includes:

• Free visual assessment and quote
• Scheduled installation at your convenience
• Installation using current 18th Edition-compliant equipment
• Full testing (insulation resistance, RCD trip times, continuity)
• Certification and advice for future modifications
• Follow-up reassurance checks and customer care post-install

We operate across all Leeds postcodes, including:

• North Leeds: Meanwood, Moortown, Alwoodley
• West Leeds: Bramley, Pudsey, Armley
• East Leeds: Garforth, Colton, Cross Gates
• South Leeds: Rothwell, Middleton, Morley
• City Centre and Surrounds: LS1–LS29

Whether you're a homeowner upgrading for peace of mind or a landlord ensuring compliance, we tailor our services to your needs and property layout. You can find reviews and detailed project examples at www.duravault.co.uk, along with further services like EICRs, EV charging installs, and lighting services.

If you’ve identified any signs of an aging fuse board—frequent trips, lack of RCDs, rewireable fuses, or messy unlabeled wiring—replacing it is one of the most important safety investments you can make in your Leeds home. Modern boards keep you protected, support modern appliances, and make future upgrades simpler.

Duravault is here to handle everything: assessment, supply, installation, and certification—all with clear communication and local peace of mind. We offer competitive pricing and responsive scheduling across all Leeds postcodes.

📞 Get in touch today on 0113 436 9988 or book your free survey via www.duravault.co.uk

Don’t wait. If your fuse board is old, replacement signalled better safety, compliance, and ease of mind.
